HART Siab Transmitter
Kev ntsuas qhov siab: -1 ... 0 ~ 0.1 ... 1000bar.
-2-hlau 4 ~ 20mA tso zis nrog HART, tau tshaj ROSEMOUNT Cov Khoom.
Qhov ntsuas taw tuaj yeem tig tau rau kev nyeem yooj yim.
Muaj qhov raug thiab qhov ruaj khov.
Tawg: muaj kev nyab xeeb sab hauv lossis cov ntawv pov thawj nplaim hluav taws.
Hart Siab Transmitter
Kev piav qhia ntawm hart siab transmitter
UIB5 hart pressure transmitter txais yuav qhov zoo tshaj qhov siab sensor nti, thiab khw muag khoom cov kev hloov kho xws li lub ntsuas qhov kub thiab txias, ntsuas thiab tawm tswv yim / tso tawm cov yam ntxwv los ntawm lub cim nco E2PROM, tom qab ntawd ua haujlwm los ntawm CPU microprocessor, tsis siv neeg kub hloov kho, teeb liab lub suab, V / Kuv hloov dua siab tshiab thiab A / D hloov dua siab tshiab, thiab tso zis 4 ~ 20mA tus qauv teeb liab, thiab tseem tuaj yeem ua tau nrog Hart kev sib txuas lus ib txhij. Thaum sib txuas lus, cov teeb liab zaus yuav tsis muaj kev ntxhov siab rau 4 ~ 20mA teeb liab.
UIB5 hart pressure transmitter yog tshwj xeeb nrog kev ntsuas kub, lub siab thiab cov yam ntxwv tsim tawm. Nws tuaj yeem hloov lub dav xa hluav taws xob hloov mus rau tag nrho thiab siv dav rau kev ntsuas tsis siv neeg & tswj kev lag luam roj av, kev lag luam chemical, hluav taws xob, kev tiv thaiv ib puag ncig.

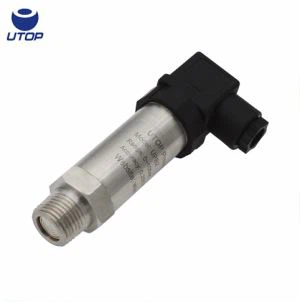

Cov duab ntawm hart siab transmitter
Pem hauv ntej sab Tom qab sab
Nta ntawm hart siab transmitter
Kev ntsuas qhov siab: -1 ... 0 ~ 0.1 ... 1000bar
-2-hlau 4 ~ 20mA tso zis nrog HART, tau tshaj ROSEMOUNT Cov Khoom.
Qhov ntsuas taw qhia ntawm Hart siab transmitter tuaj yeem tig rau txoj kev nyeem tau yooj yim
Muaj qhov raug thiab qhov ruaj khov
Tawg: muaj kev nyab xeeb sab hauv lossis cov ntawv pov thawj nplaim hluav taws
Cov lus pom zoo ntawm hart siab transmitter
| siab yog hom twg | -1 ... 0 ~ 0.1 ... 1000bar |
| sib tshooj siab | 150% FS |
| siab hom | koob qhia hais tias, kiag li, tso cua tag huv tibsi, txawv |
| tso zis teeb liab | 4 ~ 20mA nrog Hart kev sib txuas lus p sib hloov pauv |
| raug | 0.1% FS, 0.2% FS (qauv) |
| thauj kuj | R L = (U-12V) /0.02A (4 ~ 20mA Cov zis tso tawm tam sim no) U-voj voltage (V) |
| mus sij hawm ntev stability | <0.2% fs=""> |
| muab voltage | 12 ~ 36VDC |
| compensated kub ntau yam | -10 ~ 70 ℃ |
| kev khiav hauj lwm kub ntau | -40 ~ + 85 ℃; (-40 ~ + 120 ℃ kev xaiv) |
| qhov ntsuas kub coefficient ntawm xoom | 0.2% FS / 10 ℃ |
| qhov ntsuas kub coefficient ntawm kev ncua | 0.2% FS / 10 ℃ |
| cov txheej txheem kev sib txuas | G1 / 2 lossis lwm tus |
| hluav taws xob txuas | M20x1.5 |
| cov khoom ntawm wetted | 316SS |
| cov khoom ntawm diaphragm | 316LSS |
