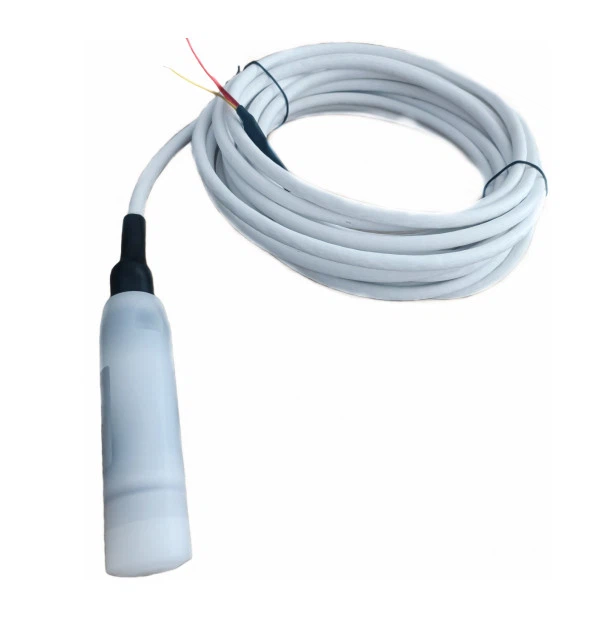

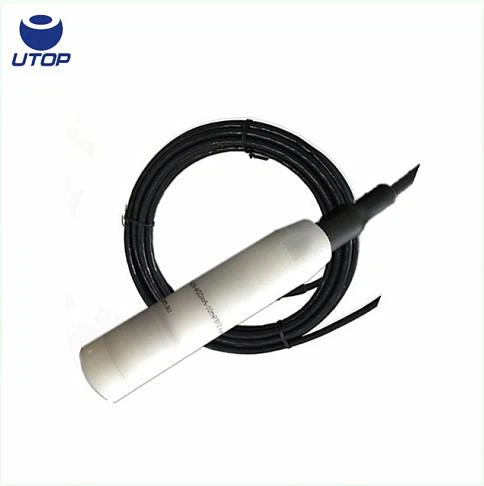

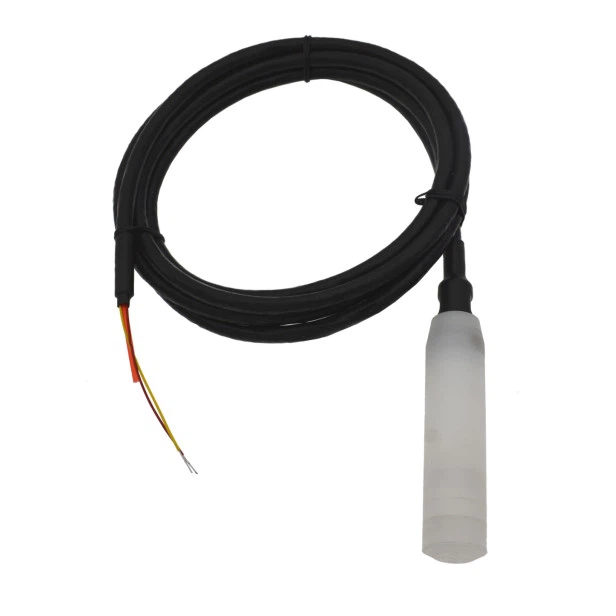

PVDF Lub Tsev Hloov Pauv Hloov Pauv Hloov
※ Kev Tiv Thaiv: IP68.
Haum rau cov tshuaj tiv thaiv corrosive tshaj tawm zoo li muaj zog acid lossis muaj zog alkali.
※ Los tiv thaiv cuam tshuam, zoo nyob ntev ntev ruaj khov.
※ PVDF vaj tsev, PTFE cable.
PVDF Lub Tsev Hloov Pauv Hloov Pauv Hloov
Kev piav qhia
ULB7 PVDF qib ntsuas xa hluav taws xob yog tsim los ntawm kev siv txawv teb siab thiab ruaj khov ceramic sensors. Dhau ntawm cov qauv tsim tshwj xeeb thiab ntsuas kub thiab txias, cov teeb liab ua kom nrov zog thiab V / Kuv hloov. Nws cov PVDF cov khoom vaj tse yog tag nrho tsim qauv. Cov xaim ntawm ULB7 muab tso rau hauv PTFE yeeb nkab, ib txhij nrog cov yeeb nkab ua pa uas ua rau lub zog rov qab lub zog txuas rau cov cua siab.
Txhawm rau kom paub tseeb ULB7 PVDF qib sib kis cov vaj tsev nyob muaj lub neej ntev, txhua qhov sab nraud txuas sab nraud ntawm vaj tse thiab kab hluav taws xob tau muab ntim cia. Qhov tshwj xeeb sab hauv qauv ntawm ULB7 ua kom nws muaj kev ua haujlwm ntawm tiv thaiv hws.
Nta
※ Kev Tiv Thaiv: IP68.
Haum rau cov tshuaj tiv thaiv corrosive tshaj tawm zoo li muaj zog acid lossis muaj zog alkali.
※ Los tiv thaiv cuam tshuam, zoo nyob ntev ntev ruaj khov.
※ PVDF vaj tsev, PTFE cable.
Cov Lus Qhia Tshwj Xeeb
| ntsuas ntsuas hom | 0 ~ 2mH2O ... 500mH2O |
| sib tshooj | 200% FS |
| tso zis teeb liab | 4 ~ 20mA, 0 ~ 5V, 0 ~ 10V, 1 ~ 5V |
| raug | 0.25% FS, 0.5% FS (tus qauv) |
| thauj kuj | R L = (U-12V) /0.02A (4 ~ 20mA tso zis tam sim no) U-ntxig voltag (V) |
| muab voltage | 12 ~ 36VDC |
| compensated kub ntau yam | -10 ~ + 70 ℃ |
| kev khiav hauj lwm kub ntau | -40 ~ 100 ℃ |
| hluav taws xob txuas | Φ9 hli thaiv cov xaim nrog lub qhov dej hose (PTFE) |
| cov khoom ntawm wetted ib feem thiab vaj tsev | PVDF |
| cov khoom ntawm siab ntsws | tej hub (lwm cov ntaub ntawv muaj nyob ntawm kev thov) |
ULB7 PVDF vaj tsev qib sib kis tau siv dav rau kev ntsuas qib ntawm cov kua dej ua kua raws li muaj zog acid lossis muaj zog alkali thiab lwm yam hauv chaw tsim tshuaj, tshuaj cog thiab lwm yam.
Cim npe nrov: PVDF qib theem cov xa khoom, Tuam Tshoj, cov chaw muag khoom, cov chaw tsim khoom, chaw muag khoom, siv, yuav, daim ntawv teev nqi, nqe hauv Suav Teb
